eBook: Implementing 3D Printing in a Medical Environment

eBook: Implementing 3D Printing in a Medical Environment

May 12, 2020 – By B9Creations

Customization is key in medical environments – making 3D printing the perfect solution. Additive manufacturing enables engineers, product designers, and surgical solution providers to create an array of medical devices, including ones that require complex features or are patient customized.

3D printers can also accelerate design development, rapidly creating different design iterations of the same device, taken from customer, marketing, or clinical input. Using 3D printing, healthcare professionals and medical device manufacturers can now move from virtual model to print and prototyping to production runs of thousands of parts seamlessly.

B9Creations has established itself as the industry leader in production, speed, and value, serving brands ranging from Johnson & Johnson and Proctor & Gamble to 3M, B. Braun Medical Inc., The National Institutes of Health, and Medtronic with a track record of rapid innovation in the healthcare sector.

Key Reasons to Leverage Digital Manufacturing for Medical & Applications Best Suited for 3D Printing

Why Digital Manufacturing for Medical?

Production-Circle

Design Freedom & Interactive Design Analysis

Known for design freedom, additive manufacturing enables users to design without the constraints of traditional manufacturing – this production method allows engineers, product designers, and surgical solution providers to create patient-customized medical devices that require even the most complex features. This technology also empowers users to take feedback from clinical or marketing/sales professionals and use it to make critical design adjustments in real time, saving on development time and cost.

Accelerate Design Cycles with Rapid Prototyping

With additive technology, users can move from prototype to production of medical devices with ease. Healthcare professionals and engineers can create prototypes in production-grade materials for functional and regulatory testing, and with high-speed 3D printing, users can get parts in an hour and print 10+ different design iterations daily.

Bridge Tooling Before Production

Additive manufacturing allows users to leverage cost-effective bridge tooling for design and market validation before capital investment in tools. This method of bridging the gap between prototyping and final production of your parts is the perfect solution for volumes which would otherwise be costly and time consuming to create using 3D printing.

Low-Volume Production

Add flexibility and resilience into your supply chain. With additive manufacturing technology, users will avoid the expense of tooling by 3D printing runs of thousands of parts. And with our IEC 60601-1 and 60601-1-2 medical equipment compliant 3D printer and engineering-grade or biocompatible materials, clinical professionals can quickly and cost-effectively create functional end-use parts.

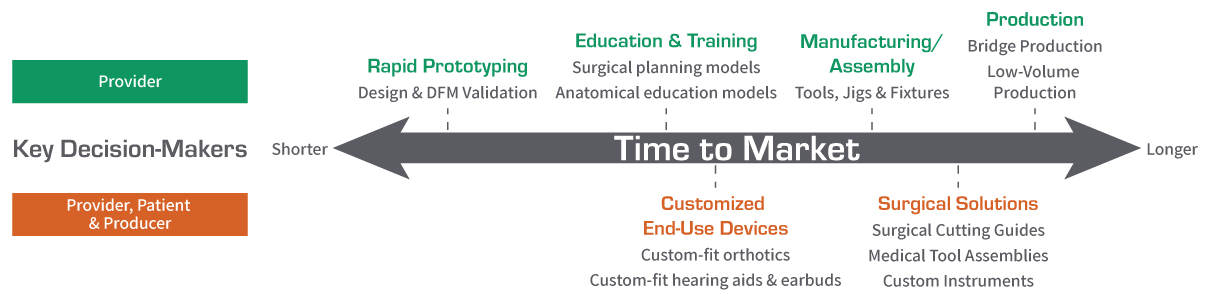

Implementation Timeline

TIme-to-Market_horizontal_web

When considering implementing 3D printing in a medical environment, it’s important to understand which applications are well suited to additive manufacturing. B9Creations serves key subsets of the medical industry, from medical devices to anatomical models and audiology applications through orthopedics and surgical solutions.

But no matter what healthcare specialty your company represents, one of the main considerations when implementing 3D printing centers on implementation. How soon additive manufacturing can be brought into that process? Will implementation take a long time, or can it be quick? Which key decision-makers are part of that process?



The Top Regulatory, Technical, & Business Considerations for Implementing 3D Printing in a Medical Environment

Business Case_01-1Business

What is the total cost of ownership?

Initial investment, operating costs, consumables

What are the maintenance requirements?

Calibrations required? Does the resin vat degrade?

What business results can be expected?

What does the learning cure look like?

What does the learning curve look like?

What does the training and support look like?

Is it field deployable?

Can it be operated outside a factory setting? Additional ventilation or electrical supply required?

Business Case_03-1

Technical

What is missing from your current additive manufacturing capabilities?

what type of technology do you need?

What type of materials?

How is the resolution, precision & accuracy?

How easy is it to use? How fast? How reliable?

Business Case_02-1Regulatory

Is the 3D printer medical equipment compliant?

Are the materials biocompatible? Sterilizable?

Is the post-processing workflow clearly defined too maintain biocompatibility?

Do you need to get buy-in from your Environmental Health & Safety team?



How to Build a Business Case for Adopting, Adding, or Upgrading Your 3D Printing Capabilities

Comparing costs is an important step in building a business case for adopting, adding, or upgrading your additive technology. A cost comparison guide like the one below will help you decide which 3D printer or method of production will best suit your business.

TCO


How Medical Manufactures are Utilizing B9Creations 3D Printing Technology

AdobeStock_59023585_BWMajor Medical Device Manufacturer

Head of $1M Additive Manufacturing Lab

Challenge:

Needed to produce high-resolution parts with incredibly fine detail that no other 3D printer in their lab could produce.

Solution:

Using our high-detail resin, the high-precision B9 Core Series 3D printer is not only capable of incredible detail, like 80-micron threads, but prints so fast, the lab has increased their throughput, production, capacity, turnaround time, and number of design iterations.



Middle age man wearing white medical coat and smiling BWMedical & Pharmaceutical Device Company

Medical Device Engineer

Challenge:

Looking for an upgraded 3D printing solution that offers precision, surface finish and speed - with dyeable materials.

Solution:

The B9 Core Med 500 3D printer delivered parts 5 times faster than their SLA 3D printer, without any software or post-processing failures. Using our biocompatible white resin, the parts were not only dyeable, but boasted sharper resolution and better quality than injection-molded parts.



Middle age man wearing blue button up BWMedical Device Manufacturer

Entire Product Design Team

Challenge:

Battling painfully slow print times, the product design team needed to find a faster method of production to stay on their original development timeline.

Solution:

They decided to upgrade to the B9 Core Series 3D printer, and in doing so, cut their average print time from four hours to just one hour, which means more design iterations and faster time to market.



How to Cost-Effectively Build a Digital Prototyping & Production Medical Workflow with B9Creations Technology

Medical 3D Printing Workflow (1)

Making Additive Manufacturing Solutions Work for You

If you’re looking to accelerate design cycles, lower production costs, create a more resilient supply chain, or gain flexibility throughout your product’s life cycle, DLP technology offers rapid, reliable, high-resolution 3D printing.

Unlike low-resolution FFF or costly SLS printers, DLP technology offers high fidelity to your CAD files with a quick return on investment – and better resolution, higher accuracy, and faster speeds than SLA printers. B9Creations DLP technology is differentiated even within its own field. Unlike other DLP platforms that offer fast printing times but painfully slow post-processing, B9Creations’ workflow includes automated post-processing that cleans and cures models in minutes. Powered by FAST™ technology, users gain production-grade parts, pinpoint accuracy and precision, and a flawless finish on all B9Creations 3D printers.

Production-Time

When implementing additive manufacturing into your business, it’s important to find a 3D printer, like the B9 Core Series, that delivers quick and easy setup, precision, speed, and profitability.

Leverage Distributive Additive Manufacturing to Run Your Business:
A Customer Case

Manufacturing-vs-Design-ProductionA B9Creations customer, with roughly 900 store locations throughout the US, was being pitched to build a multi-million-dollar centralized additive manufacturing facility. But doing so would require reliance on a delivery service, like FedEx, to distribute their products – and additionally carried significant risk if that geographic site closed because of weather or other unforeseen events.

Bringing production in house, and leveraging strong locations from a workforce standpoint, for things like design, quality control, etc., will enable their business to drastically reduce turnaround time while implementing lean manufacturing, a production methodology that focuses on minimizing waste in the manufacturing process without sacrificing productivity.

Additionally, the price of the B9 Core Series allows them to invest in extra capacity on-site to mitigate risk caused by closures at any one location, allowing other sites to absorb workload as needed – treating the nationwide sprawl of stores as a self-healing mesh.

Not only is customer turnaround time no longer dependent upon FedEx, but time zones now carry an advantage. If their design team is based in New York, team members in California can request a file in the morning, receive one before the East Coast team leaves for the day, print it and still achieve same-day customer delivery.









How to Leverage & Scale 3D Printing to Run Your Business With a Disrupted Supply Chain, a Remote Workforce, or Increasing Part Demand

Additive manufacturing can help your business overcome unprecedented challenges that disrupt your supply chain, labor force, and revenue. Here’s how:

Business Case_04-1Diversify & Adapt Your Supply Chain

Leverage B9Creations field deployable 3D printing solution.

Utilize our service bureau at B9Creations headquarters.

Explore 3D printing as an alternative for supply chain disruption of injection-molded parts.





Business Case_06-1

Empower Remote Employees

Take our standalone, desktop unit home. It requires no additional ventilation or electrical supply.

Prep your files at home and send them to on-site technicians. With 0 calibrations and only 5 button pushes to print, even those who've never run a 3D printer before are successful from day one.





Business Case_05-1

Inventory On-Demand

Can't access inventory because of supply chain disruption or other restrictions?

Want to avoid ordering more inventory with high minimum order quantities and long lead times?

3D print critical components or entire parts on demand.





Business Case_07-1Agility Throughout Your Product's Life Cycle

Use 3D printing for prototyping and design verification, bridge manufacturing, spare parts, and end-of-life production.

Leverage 3D printing for tools, jigs and fixtures during production.
