B9Creator Z Axis Motor Problems
B9Creator Z Axis Motor Problems
Print Created by: Joel HrachovecB9Creator Z Axis Motor Problems

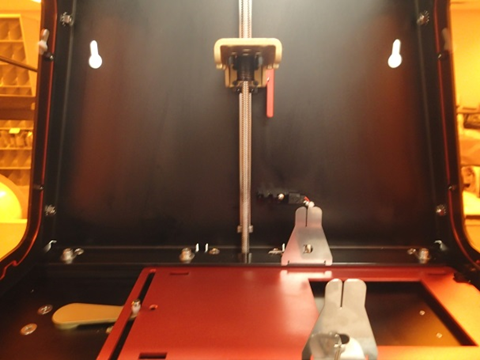

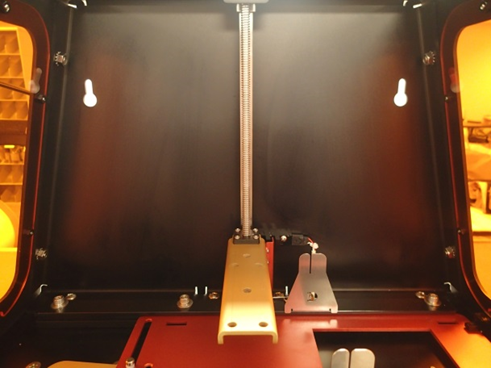

1. Run Gold arm all the way up and down to feel for any catching.

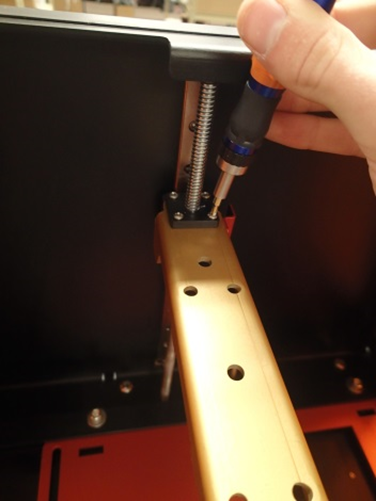

2. Unscrew the gold arm from the back-lash nut.

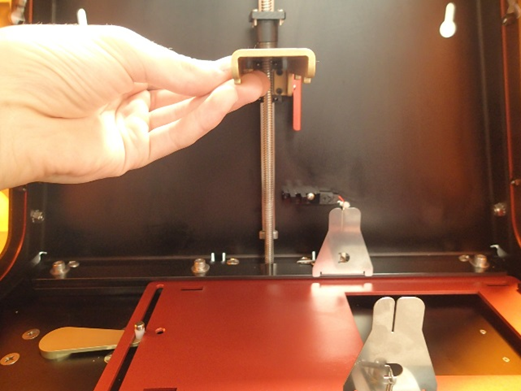

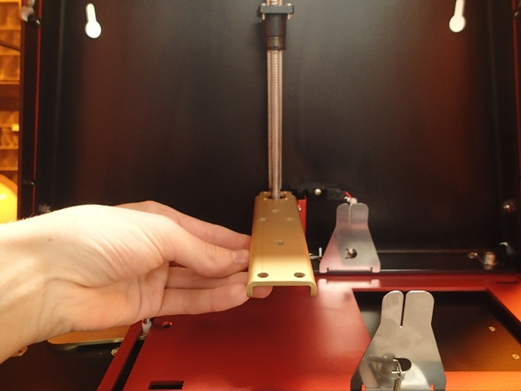

3. Slide the gold arm up and down to feel for any catching.
![](https://www.b9c.com/hubfs/Knowledge%20Base%20Import/s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction26008013063originalO_m8AvNRYmjfpIqkui0SnqsAhcfx2okFOg.png)
![](https://www.b9c.com/hubfs/Knowledge%20Base%20Import/s3.amazonaws.comcdn.freshdesk.comdatahelpdeskattachmentsproduction26008013075originalUfmbRMYbNo3bh9cUCtHSVSTsb4bpk5aHbg.png)
4. If you feel any catching, look for burrs on the z-threads and/or the slide rail. Also try adding a small amount of lithium grease to the z-threads, and a small amount of 3-in-1 oil to the z-slide rail.
